README.md

Header Image

DEDBUG FLEX

DEDBUG FLEX

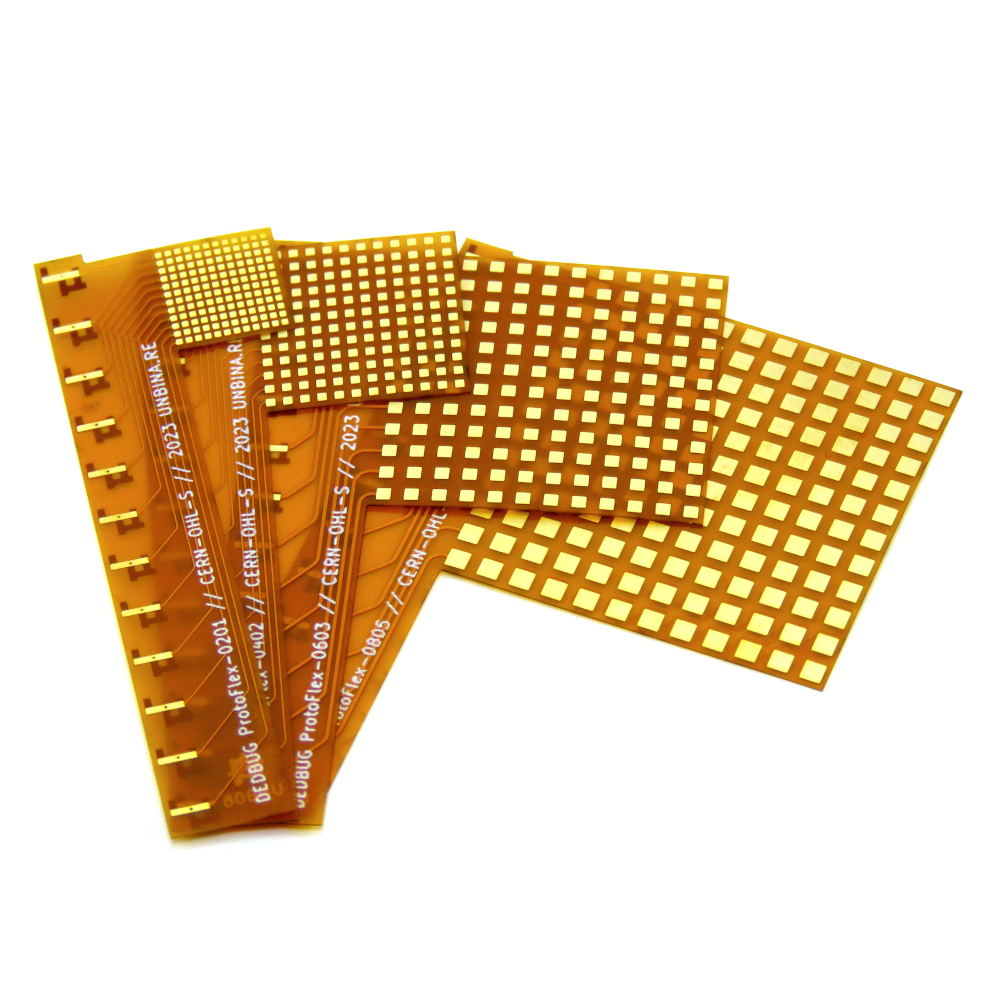

The DEDBUG FLEX boards accompany the DEDBUG Protoboard. The aim of the DEDBUG FLEX boards is to provide additional functionality to the Protoboard by soldering them to the prototyping area. The six boards are 12x12 pad grids of which the left column terminates to an edge connector that can be bridged with the cross-shaped pads on the Protoboard. The current six DEDBUG FLEX grids are 0201, 0402, 0603, 0805, 1206 and 1210-sized.

Description
The DEDBUG FLEX boards expand the functionality of the DEDBUG Protoboard. Supported by NLNet and NGI
